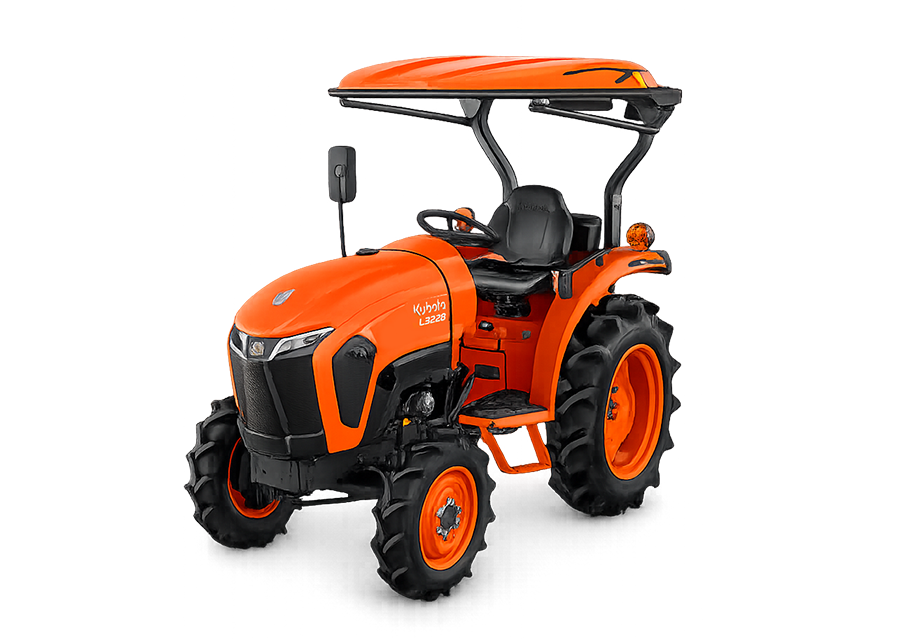

L3228

Kubota four-wheel drive tractor, ideal for small farms and small plots.

The versatile Kubota four-wheel-drive tractor for small-scale farming businesses and small farmland plots.

Experience the wonder of Kubota with product demonstration! Please contact your local dealer.

SPECIFICATION

MODEL			L3228
MODEL			4WD
ENNGINE	Type		Kubota diesel engine, vertical (3) cylinder, (4) stroke engine, direct combustion system, internal water cooling system.
	No. of Cylinder		3
	Displacement (cc)		1826 CC
	Engine Gross Power (HP)		32 HP
	Engine Net Power (HP)		27.8 HP
	PTO Power (HP)		27.8 HP
	Fuel Tank Capacity (L)		40 L (ဒီဇယ်)
DIMENSION	Overall length (without 3P) (mm)		2,735 mm
	Overall width (mm)		1,337 mm
	Overall height (Top of Rops) (mm)		2010 mm
	Wheelbase (mm)		_
	Min. ground clearance (mm)		330 mm
	Tread	Front (mm)	~
	Tread	Rear (mm)	~
WEIGHT (WITHOUT COUNTER WEIGHT) (Kg)			1,257 kg
CLUTH
TRAVELLING SYSTEM	Tires	Front	7 ~ 16
	Tires	Rear	11.2 ~ 2-24
	Steering		Power Steering
	Transmission		Forward (8) & Reerse (8)
	Brake		Wet Disc Brake Type
	Min. turning radius (with brake) (m)		2.5 m
	Traveling speed (km/h)		~
HYDRAULICS	Hydraulic control system		Position Control
	Pump capacity (L/min)		23.9 L/min
	Three point hitch		906 Kg
	Max. lift force	At lift points (kg)	~
	Max. lift force	24 in. behind (kg)
PTO	PTO (Engine speed) (rpm)		540 at 2,430 rpm / 750 at 2,596 rpm
