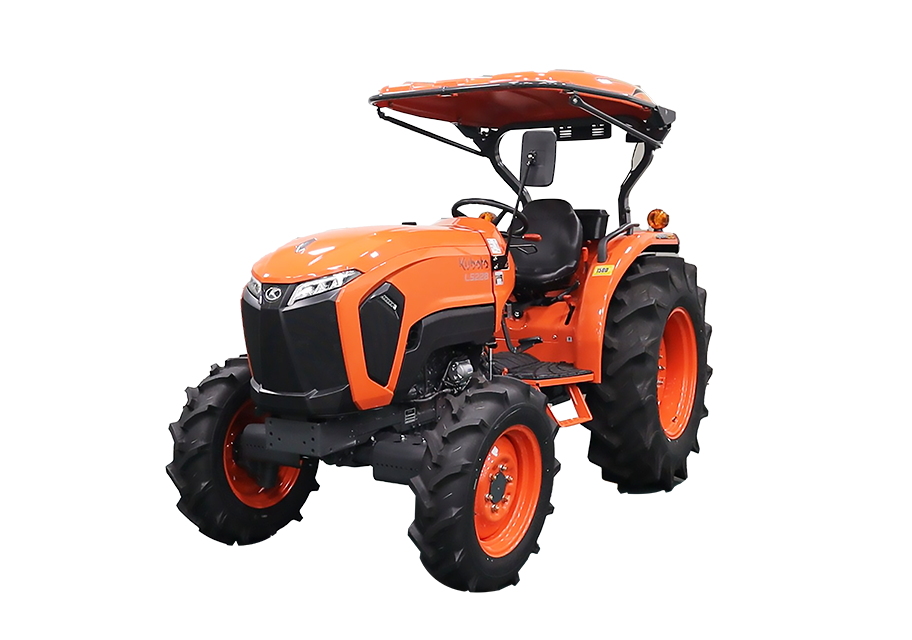

L5228
A compact, robust and high-performance tractor with the latest technology
The L5228, a high-tech multi-purpose tractor that leads the way beyond limits.
- HORSE POWER
- 52HP
- ENGINE DISPLACEMENT
- 2,434CC
- WEIGHT
- 1,493KG
Experience the wonder of Kubota with product demonstration! Please contact your local dealer.
SPECIFICATION
| MODEL | L5228 | ||
|---|---|---|---|
| 4WD | |||
| ENNGINE | Type | Kubota diesel engine, vertical (4) cylinder, (4) stroke engine, direct combustion system, internal water cooling system. |
|
| No. of Cylinder | 4 | ||
| Displacement (cc) | 2,434 CC | ||
| Engine Gross Power (HP) | 52 HP | ||
| Engine Net Power (HP) | ~ | ||
| PTO Power (HP) | 43.1 HP | ||
| Fuel Tank Capacity (L) | 48 L (ဒီဇယ်) | ||
| DIMENSION | Overall length (without 3P) (mm) | 3,125 mm | |
| Overall width (mm) | 14,95 mm | ||
| Overall height (Top of Rops) (mm) | 2,049 mm | ||
| Wheelbase (mm) | 400 mm | ||
| Min. ground clearance (mm) | ~ | ||
| Tread | Front (mm) | ~ | |
| Rear (mm) | ~ | ||
| WEIGHT (WITHOUT COUNTER WEIGHT) (Kg) | 1,493 kg | ||
| CLUTH | |||
| TRAVELLING SYSTEM | Tires | Front | 8 ~ 18 |
| Rear | 13.6 ~ 26 | ||
| Steering | Power Steering | ||
| Transmission | Forward (8) & Reverse (8) | ||
| Brake | Disc Brake Type | ||
| Min. turning radius (with brake) (m) | 2.65 m | ||
| Traveling speed (km/h) | ~ | ||
| HYDRAULICS | Hydraulic control system | position Control | |
| Pump capacity (L/min) | 30.5 L/min | ||
| Three point hitch | 1300 kg | ||
| Max. lift force | At lift points (kg) | ~ | |
| 24 in. behind (kg) | |||
| PTO | PTO (Engine speed) (rpm) | 540 at 2,430 rpm / 750 at 2,596 rpm | |
- Kubota reserves the right to change the specifications without notice.
